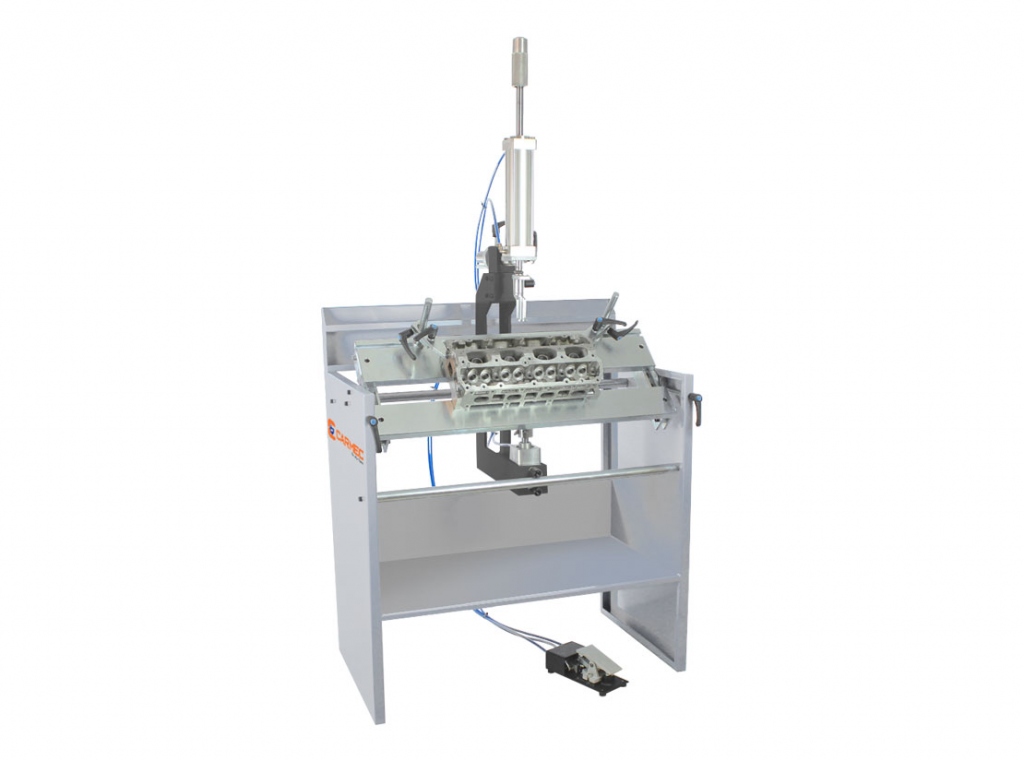

The most universal work station with easy access to all faces of the cylinder head. For disassembling and assembling of valves springs on cylinder heads for cars, trucks and motorcycles. Valve compressor lock for easy retainer removed "hand free". Access for camshaft setting and all other cylinder head operations.
Machine's Characteristics:
"Tee slots" milled plate for clamping system on the working plane
Rapid, adjustable manual clamping system
Cylinder head rotary stand at 360°
Pneumatic foot control
Variable speed regulation for air cylinder
Air cylinder easily tilts to any valve angle and assembly slides from valve
4 sizes compressing feet
Table dimensions
870×400 mm (34.2"×15.7")
Usable working table
850 mm (33.5")
Space required
960×680 mm (37.8" x 26.8")
Air pressure required
6÷8 bar
Length
960 mm (37.8")
Width
680 mm (26.8")
Height
1500÷1680 mm (59"÷66")
Net weight
131 kg (288 lbs)
Shipping weight
159 kg (350 lbs)
Packing dimensions
1200×800×1500 mm (47.2"×31.5"×59")
