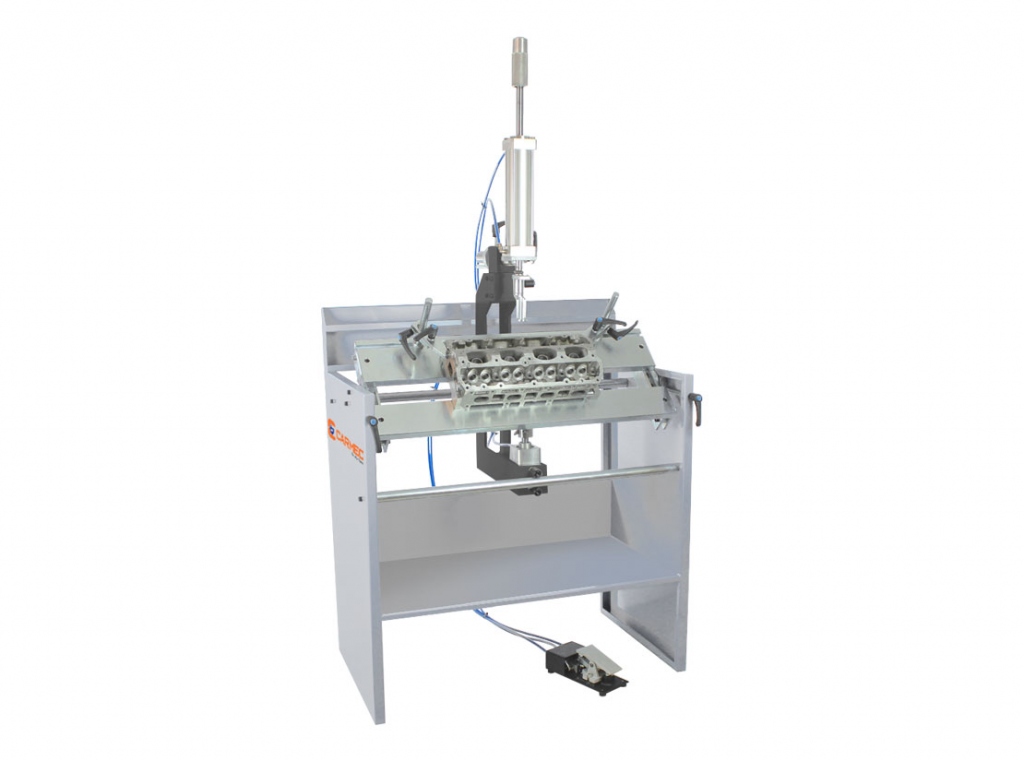

PWS 900

https://odoo.carmec.si/web/image/product.template/3961/image_1920?unique=10ab0dd

UNIVERSAL CYLINDER HEAD WORK BENCH, COMPLETE WITH STANDARD EQUIPMENT

0,00 € 0.0 EUR 0,00 € VAT Excluded

Please register to see the prices

This combination does not exist.

Contact Us

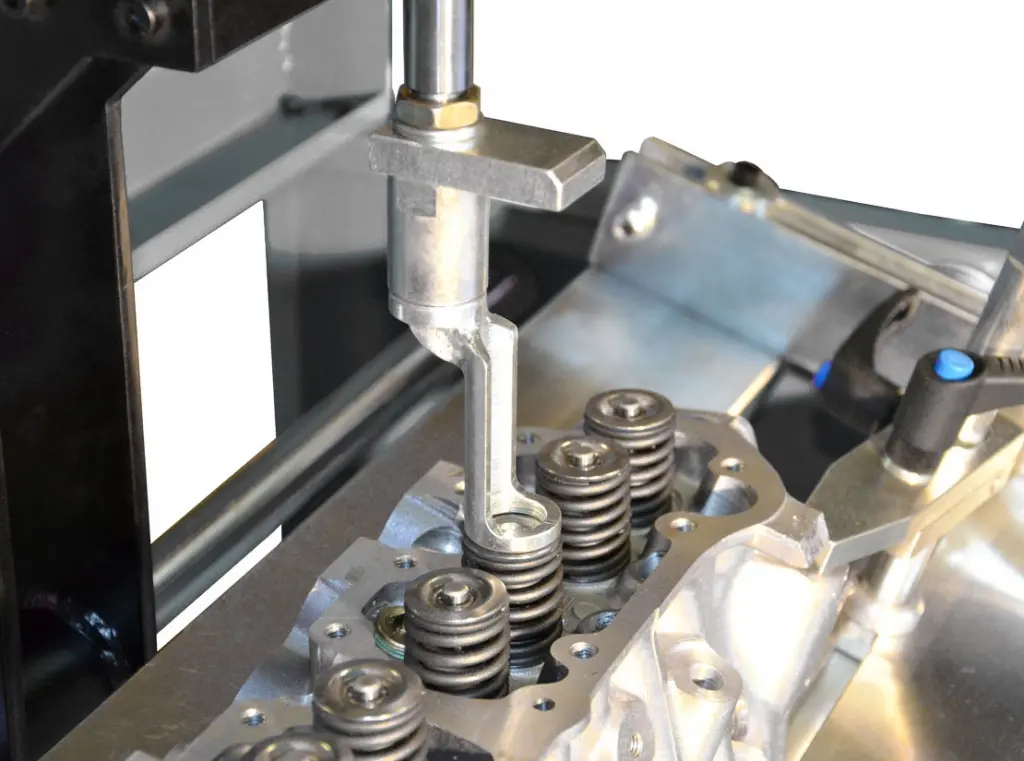

The most universal work station with easy access to all faces of the cylinder head. For disassembling and assembling of valves springs on cylinder heads for cars, trucks and motorcycles. Valve compressor lock for easy retainer removed "hand free". Access for camshaft setting and all other cylinder head operations.

Machine's Characteristics:

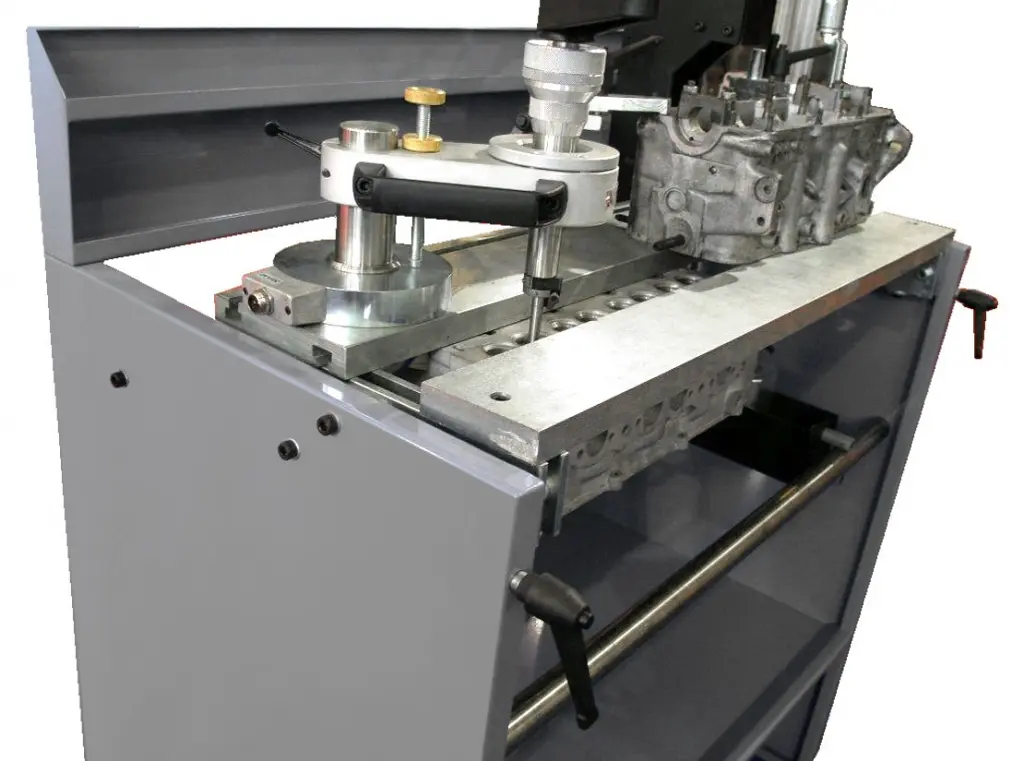

  • "Tee slots" milled plate for clamping system on the working plane
  • Rapid, adjustable manual clamping system
  • Cylinder head rotary stand at 360°

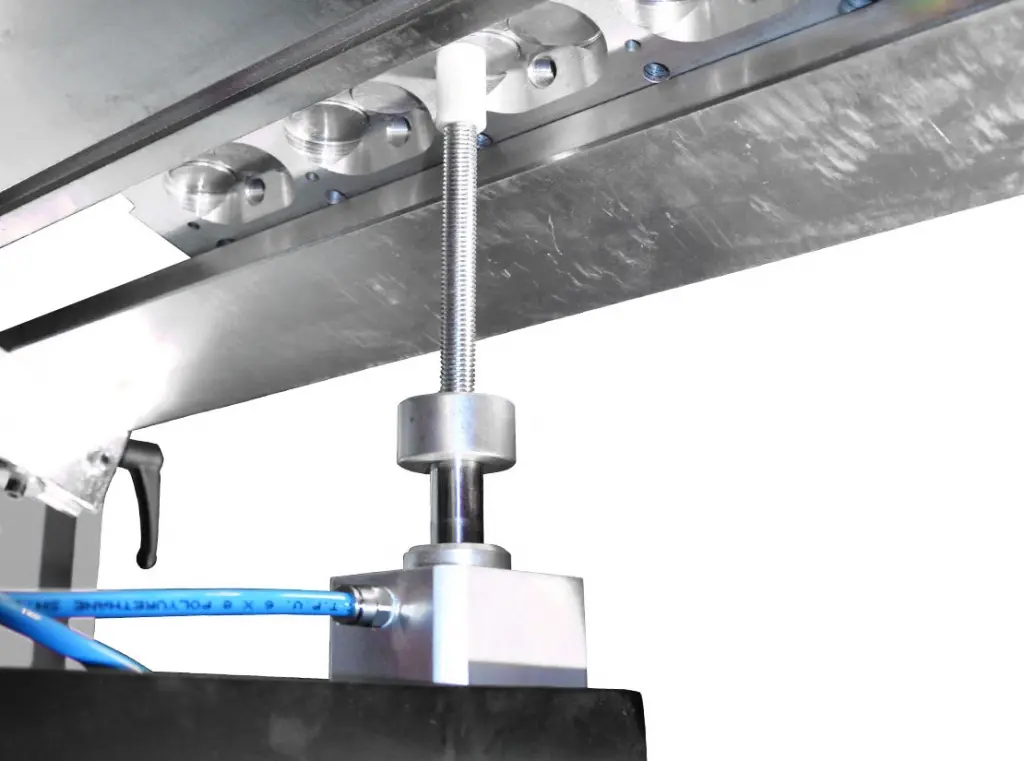

  • Pneumatic foot control
  • Variable speed regulation for air cylinder

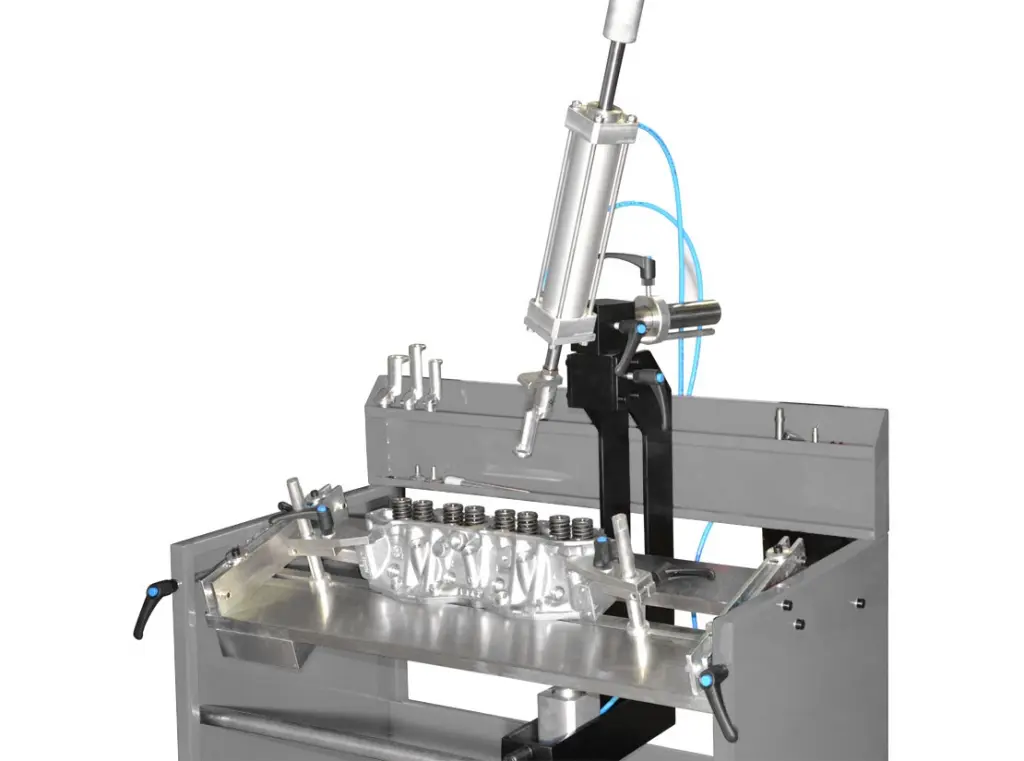

  • Air cylinder easily tilts to any valve angle and assembly slides from valve
  • 4 sizes compressing feet
















Table dimensions

870×400 mm (34.2"×15.7")

Usable working table

850 mm (33.5")

Space required

960×680 mm (37.8" x 26.8")

Air pressure required

6÷8 bar

Length

960 mm (37.8")

Width

680 mm (26.8")

Height

1500÷1680 mm (59"÷66")

Net weight

131 kg (288 lbs)

Shipping weight

159 kg (350 lbs)

Packing dimensions

1200×800×1500 mm (47.2"×31.5"×59")
