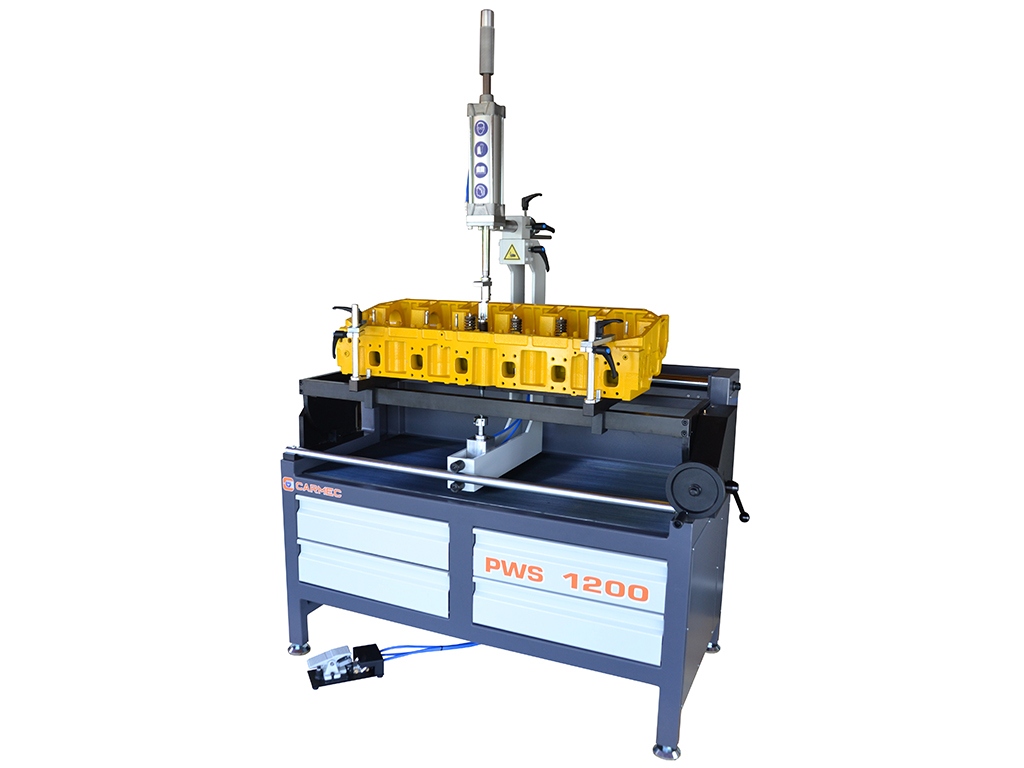

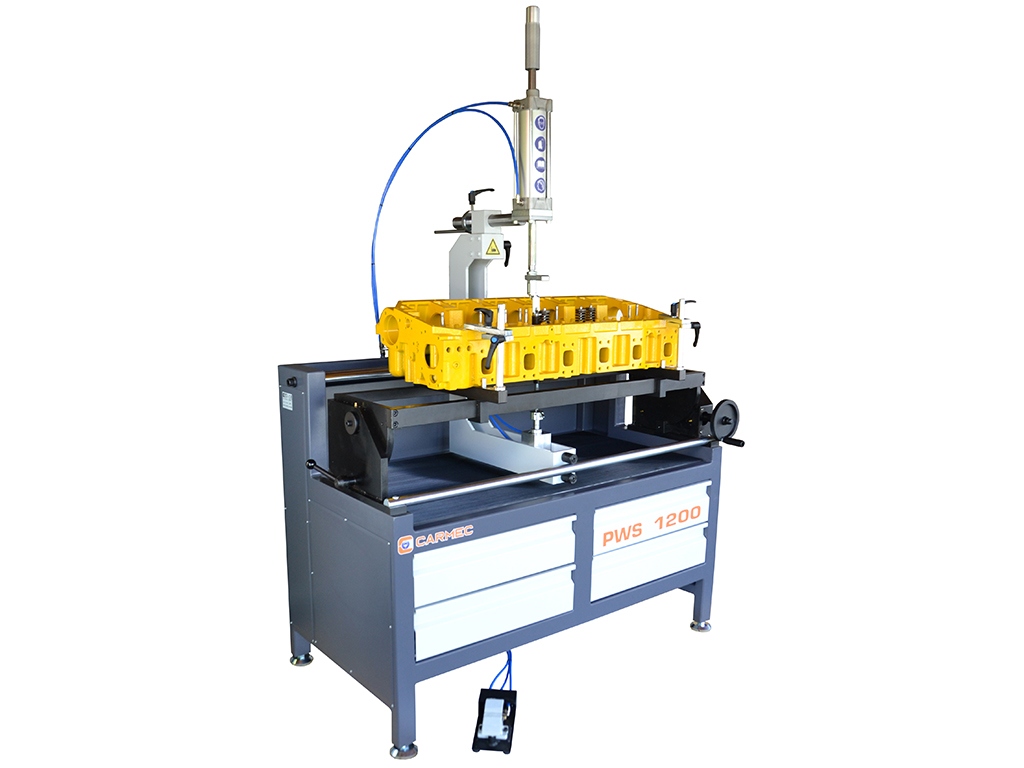

PWS 1200

https://odoo.carmec.si/web/image/product.template/3959/image_1920?unique=199578d

CYLINDER HEAD WORK BENCH - HEAVY DUTY, COMPLETE WITH STANDARD EQUIPMENT

0,00 € 0.0 EUR 0,00 € VAT Excluded

Please register to see the prices

This combination does not exist.

Contact Us



The most universal work station with easy access to all faces of the cylinder head. For disassembling and assembling of valves springs on cylinder heads for cars, trucks and motorcycles. Valve compressor lock for easy retainer removed "hand free". Access for camshaft setting and all other cylinder head operations.


Machine's Characteristics:

  • New underneath arm with counter tip
  • Rapid, adjustable manual clamping system

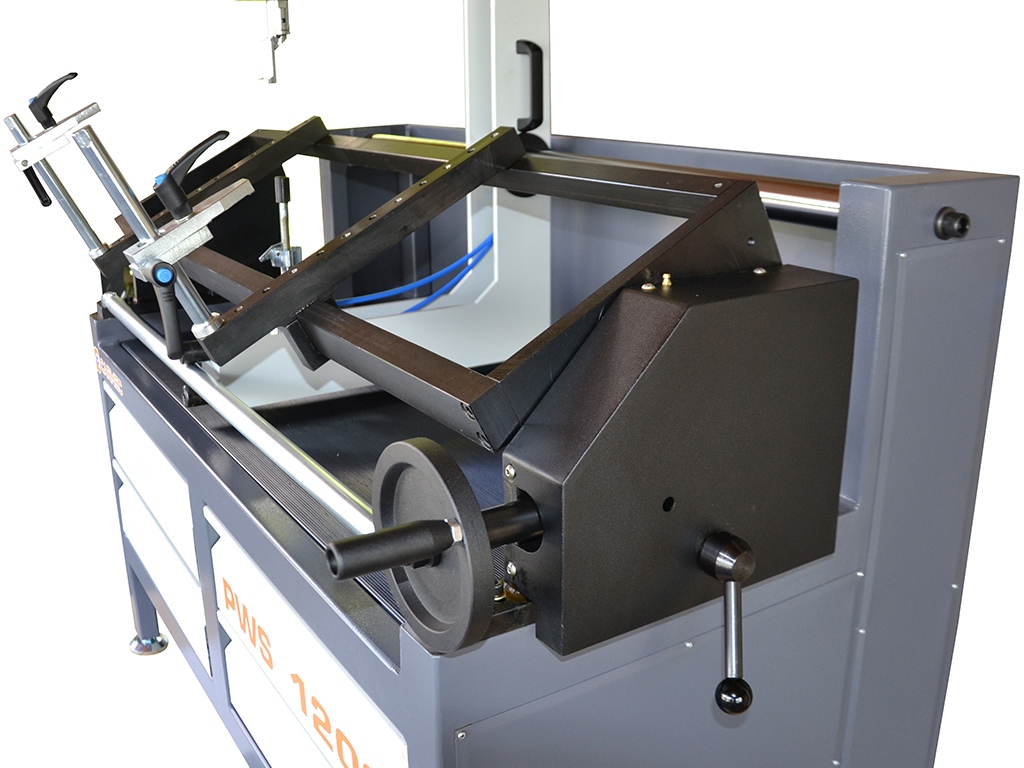

  • Handwheel for easy angle adjustment
  • Cylinder head rotary stand at 20°
  • Pneumatic foot control
  • Variable speed regulation for air cylinder
  • Air cylinder easily tilts to any valve angle and assembly slides from valve
  • 5 sizes compressing foot

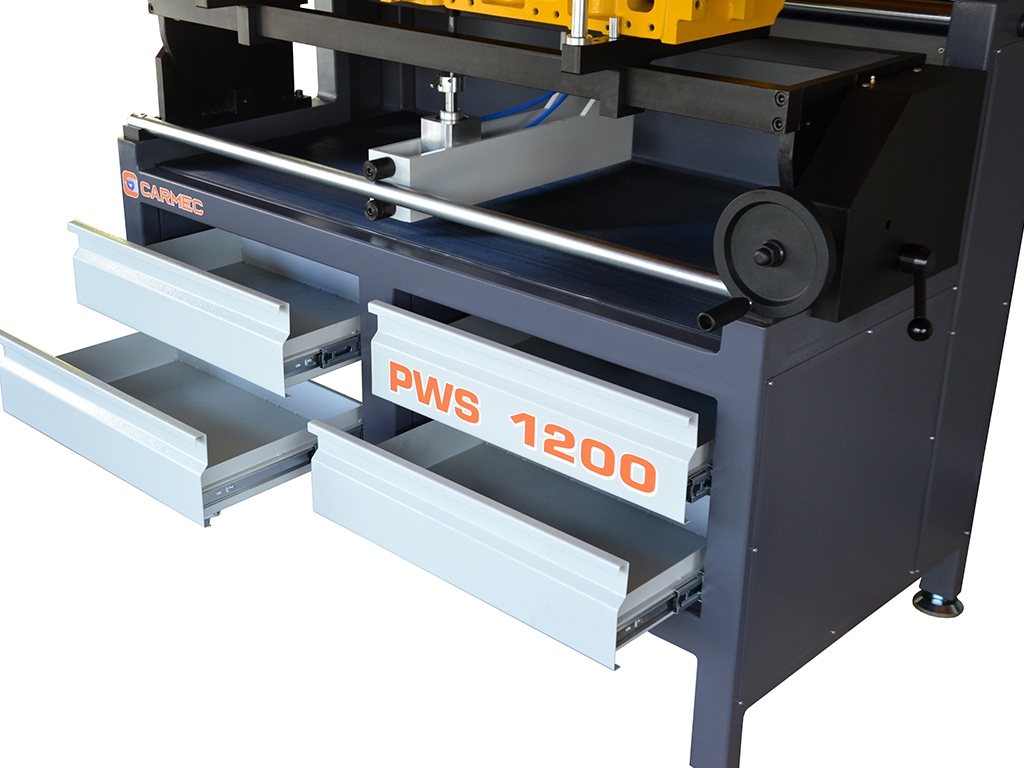

  • Tool and accessories drawers for convenient components storage
  • Valve keeper installing tool (OPTIONAL)
  • Valve keeper retrieving tool (OPTIONAL)
















Horizontal movement

1100 mm

Table dimensions

1300×360 mm

Max head capacities

1350×460×270(h) mm

Air pressure required

6÷8 bar

Compression force ​

4.436 N at 10 bar

Length

1550 mm

Width

850 mm

Height

1710 mm

Net weight

300 Kg

Shipping weight

455 Kg

Packing dimensions

2000 x 1200 x 1930 mm
