HBM 810

https://odoo.carmec.si/web/image/product.template/3554/image_1920?unique=e90634b

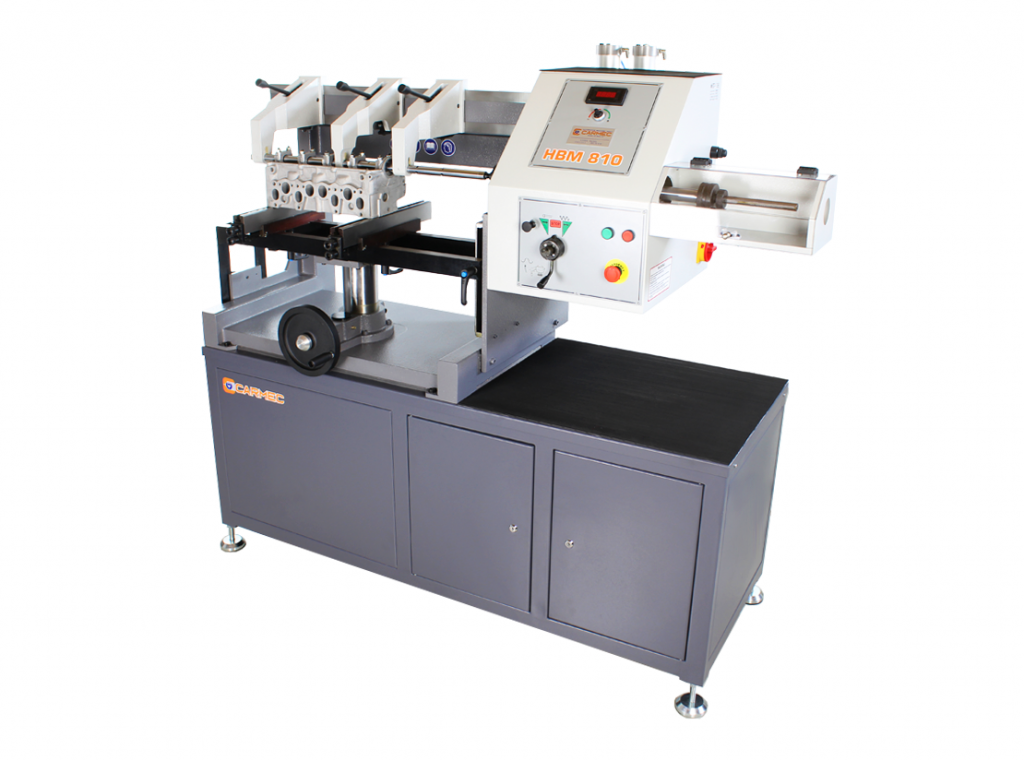

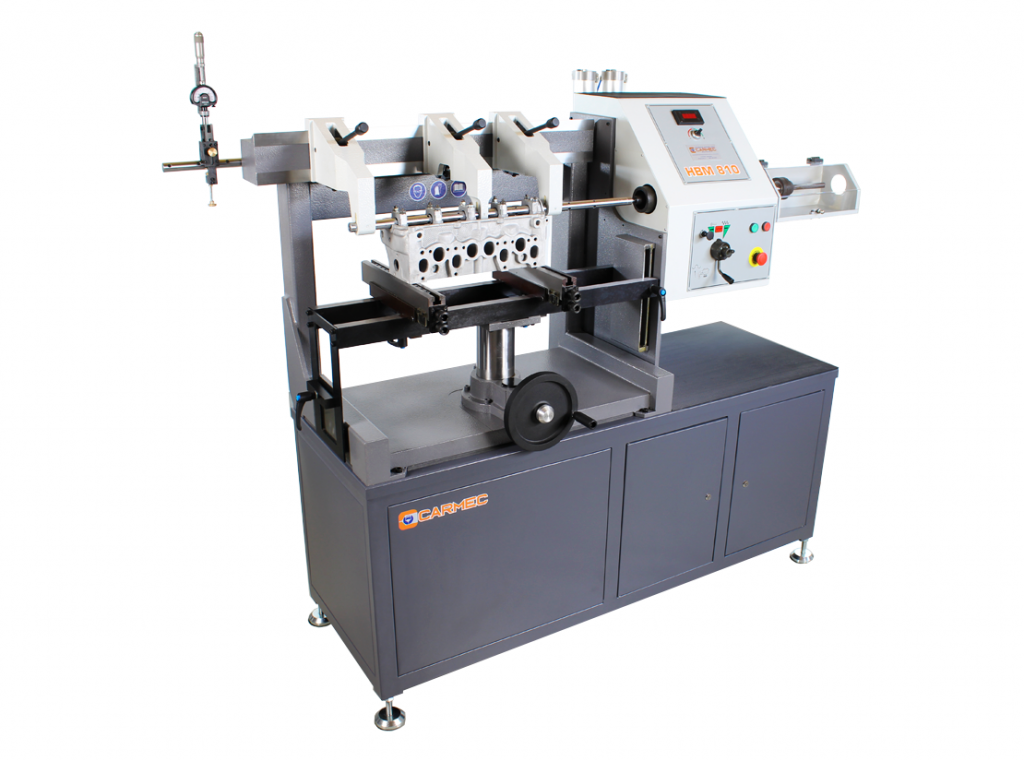

LINE BORING MACHINE FOR CYLINDER HEADS, COMPLETE WITH STANDARD EQUIPMENT

0,00 € 0.0 EUR 0,00 € VAT Excluded

Please register to see the prices

This combination does not exist.

Contact Us



Excellent machine for line boring blocks or heads.

The HBM 810 Horizontal Boring Machine is suitable for reconditioning camshaft housing holes on medium size blocks.

Very precise size control and surface finish eliminates line honing all together.

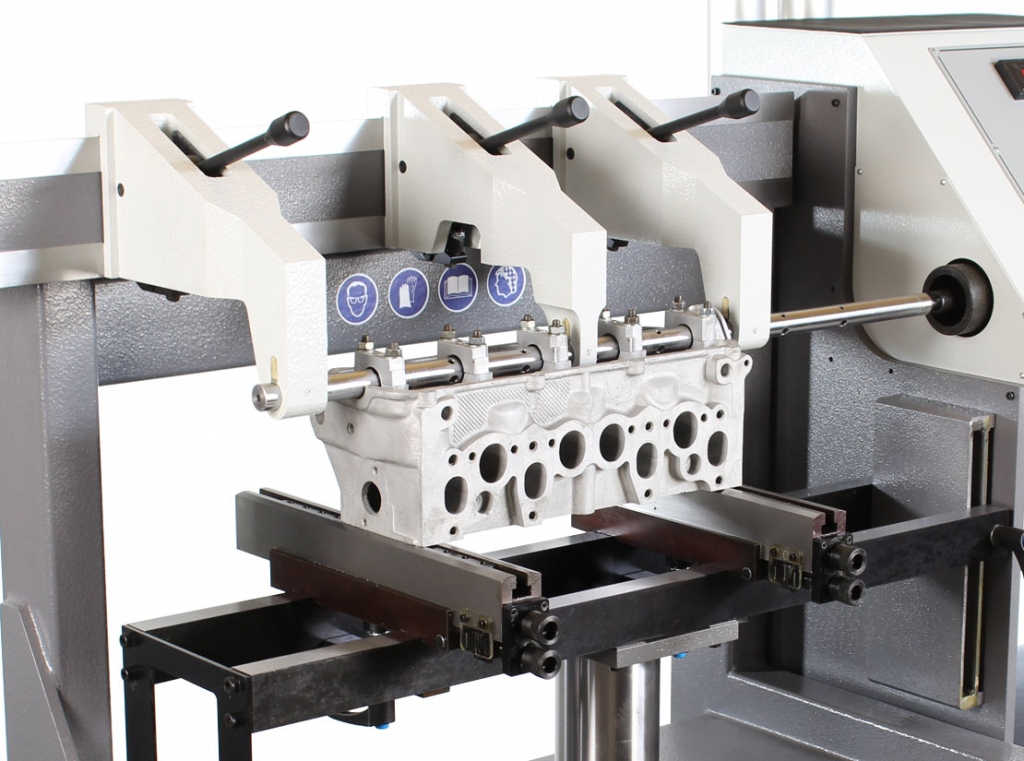

The centering of boring holes is achieved on the boring rod by means of suitable center squares and by a tool holder slide adjustable in height.

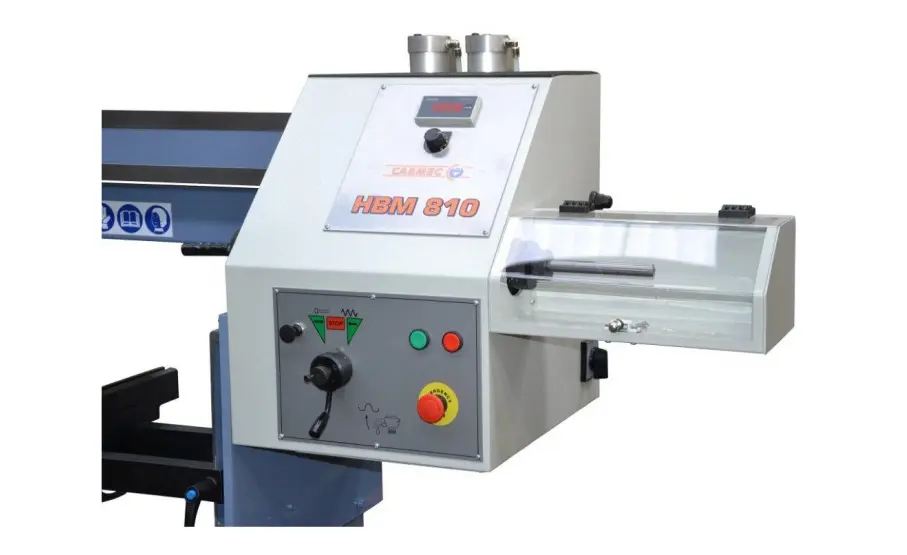

The rod is held by 3 supports and it is operated by a head equipped with D.C. engine, which permits to adjust, with a continuous revolutions variation, the rotation and feed speed of the rod.

Fast and accurate are hall marks of this great line boring machine.
















Boring capacity

24÷85 mm

Max spindle travel

100 mm

Min-Max distance height supports to bar C/L

100÷376 mm

Max cylinder head and block length

810 mm

Max cylinder head and block width

300 mm

Variable spindle rotation speeds

250÷1000 rpm

Spindle traverse rate

0÷1000 mm/min

Feed Motor power

0.50 Hp

Dimensions (LxWxH)

1910×1350×1750 mm

Weight

385 Kg
