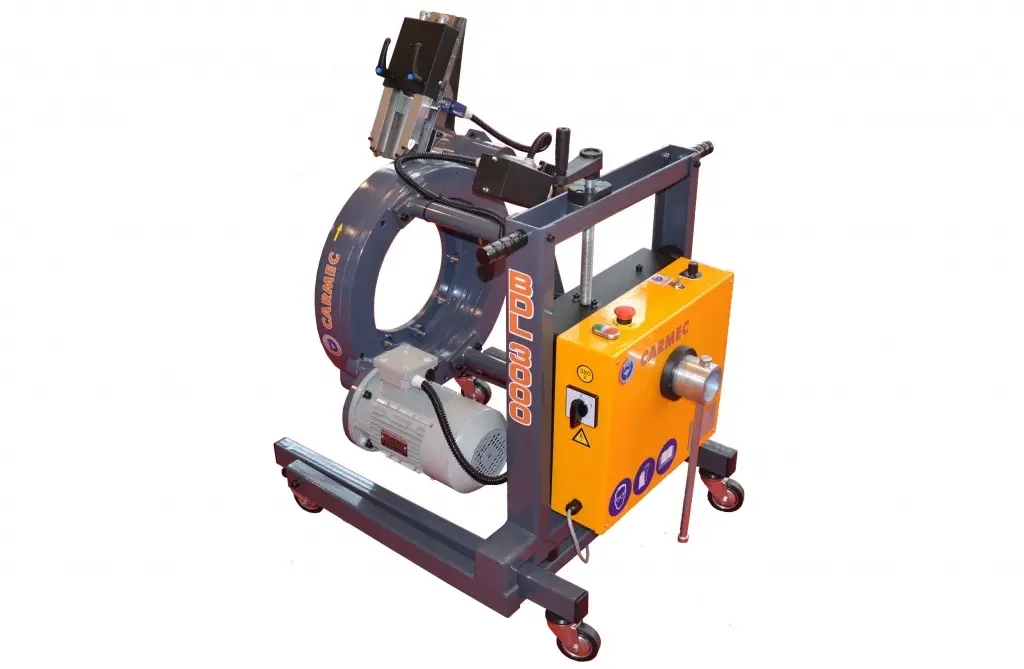

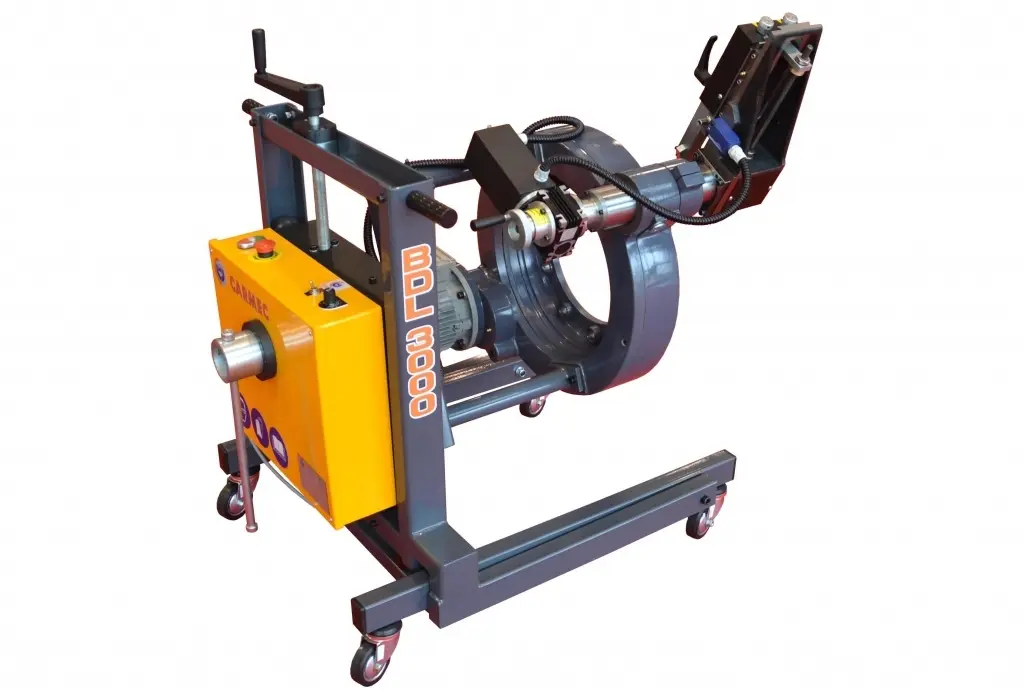

BDL 3000SP

Especially designed for easy and fast turning of brake discs on the axle of trucks, busses and light commercial vehicles without taking of the brake disc from the wheel hub.

Suitable either for traditional axles or axles with hub reduction gear.

Adjustable electronic controlled feed for best surface nishing.

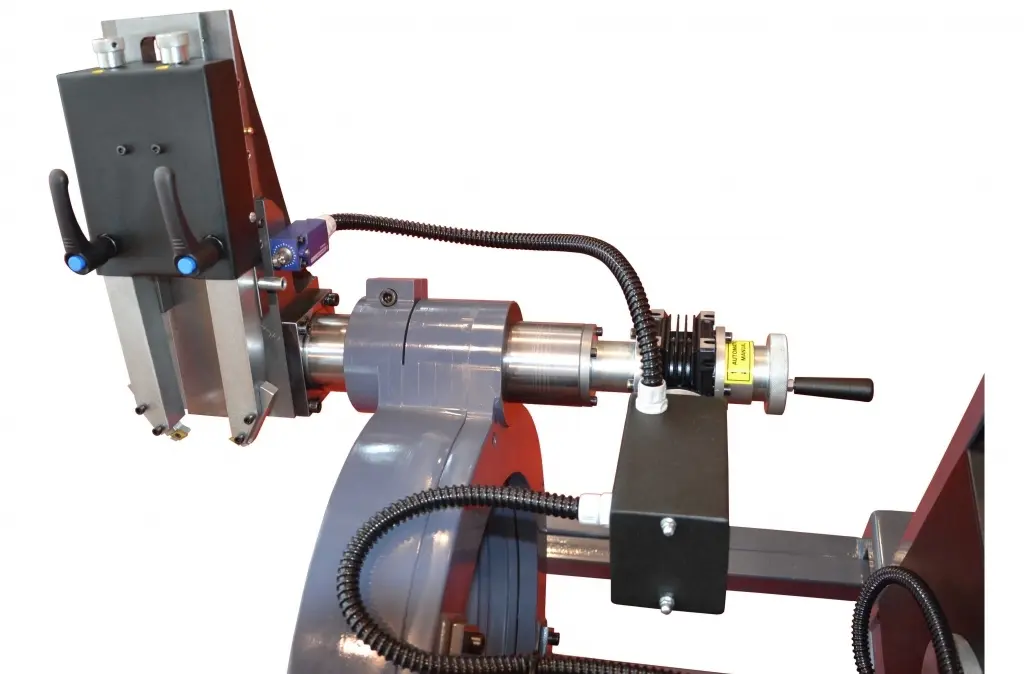

Both sides of the brake disc are precision turned in a single operation.

The brake disc lathe can be positioned in any position of the 360°, so that it will

not be necessary to dismantle the caliper.

STANDARD EQUIPMENT

• Automatic motorized and Electronically adjustable  INTERMITTENT FEEDING
• Single-phase (230V 50/60Hz 1Ph) electrical equipment, standard
• Variable speed (adjustable rotation speed) of main motor with electronic control
• Adjustable and balancing trolley

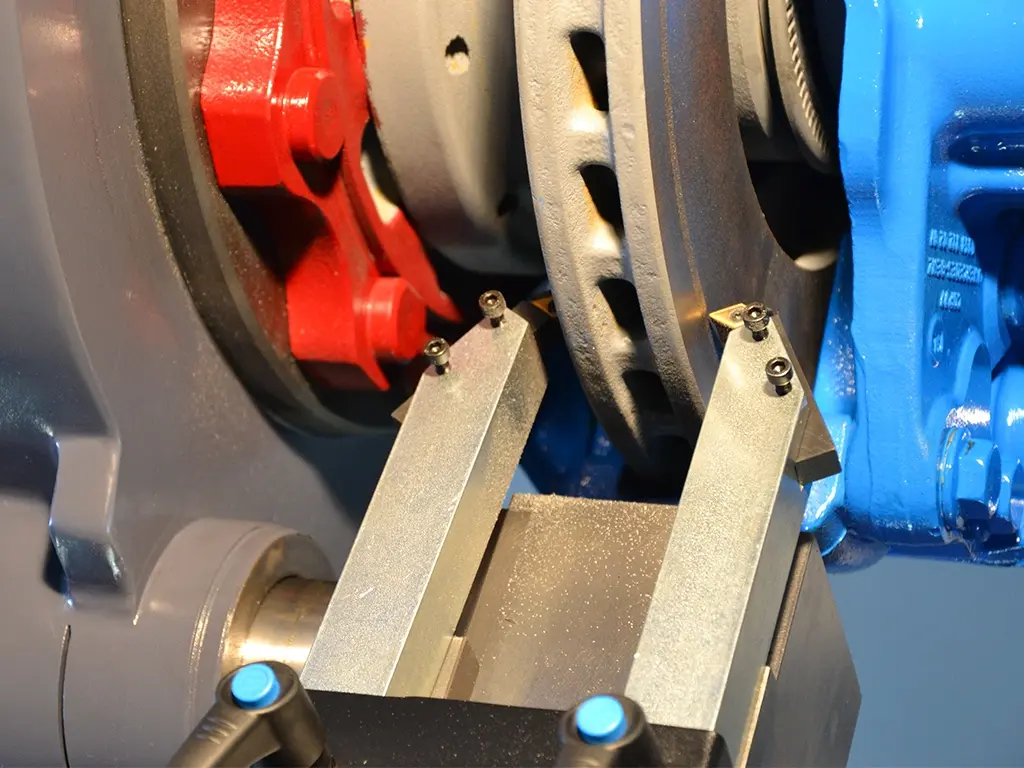

• Pair of disc cutting tools
• Flange (Adapter) for 10 hole hub connection (Euro axle).
• Electronic starting control for a smooth start (soft-start).
• Set of service spanners
• Operating and maintenance manual

OPTIONAL EQUIPMENT

• Connection’s flanges on request
